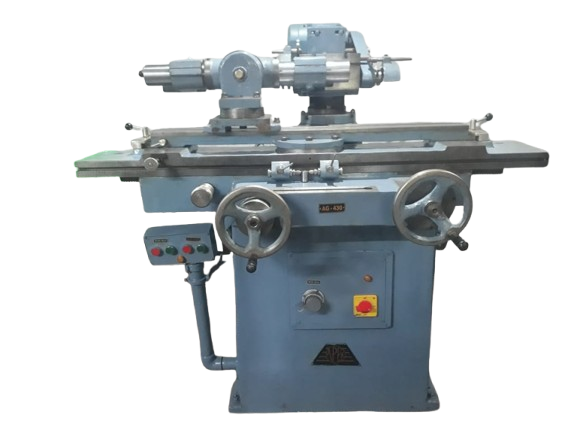

Model AG-430T

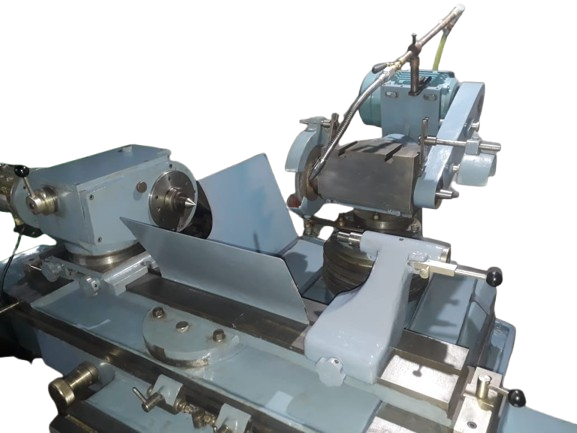

AG-430T Universal Tool & Cutter Grinder is a high-precision and versatile grinding machine designed for sharpening milling cutters, reamers, taps, form tools, hob cutters, and gauges. With support for cylindrical, surface, and internal grinding, it is ideal for tool rooms and precision manufacturing units.
TECHNICAL SPECIFICATIONS

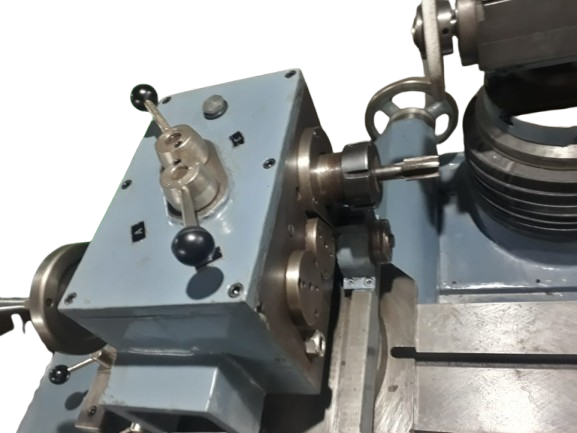

Work Head Capacity
Maximum Swing Diameter: 280 mm
Swing with Raising Block: 460 mm
Centre Between Work Head & RH Tailstock: 820 mm
Admit Between Tailstock Centers: 850 mm
Maximum Height of Wheel Centre Above Table: 310 mm
Swivel of Work Head: 360°
Maximum Job Weight (Cylindrical Grinding): 15 kg
Tilting Wheel Head
Vertical Adjustment of Wheel Head: 300 mm
Wheel Head Swivel: 360°
Tilting in Either Direction: ±180°
Spindle Speed: 3400 / 5400 RPM
Motor Power: 0.75 kW / 1 HP
Heavy-Duty Vibration-Dampened Wheel Head Column
Table & Machine Details
Table Size: 1100 mm × 140 mm
Longitudinal Traverse: 510 mm
Cross Traverse: 250 mm
Swivel Either Side of Center (End Scale): ±9°
Swivel LH / RH of Column (Centre Scale): ±45°
The AG-430T features a heavy-duty vibration-dampened wheel head, precision alloy-steel spindle with lifetime-greased bearings, and a roller-guided table system for smooth, accurate, and long-term grinding performance.

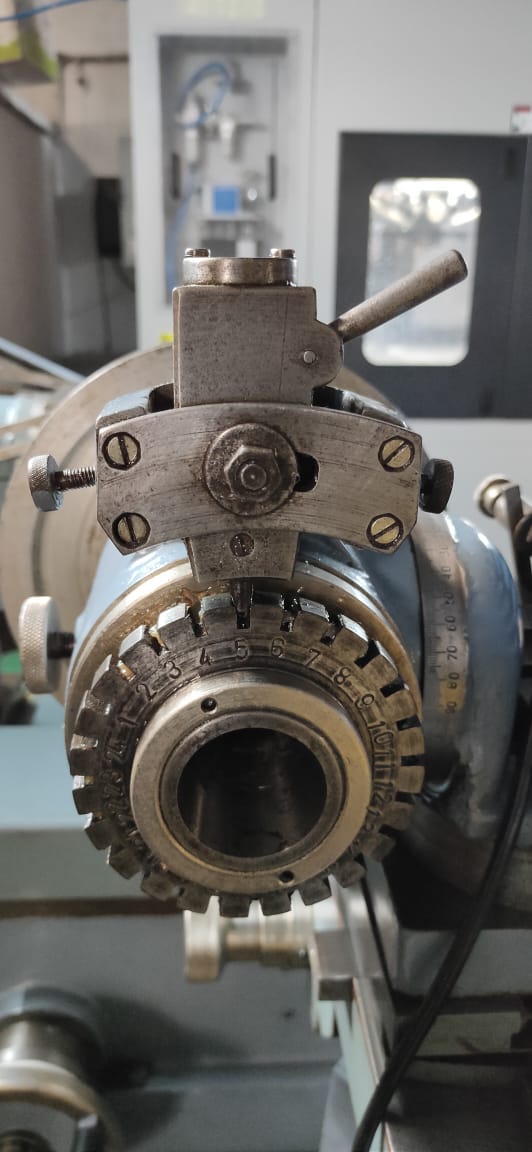

Attachments For
Long Rimmer Grinding attachments
3 Speed Cylindrical Grinding attachments
Tap Relief Attachment
