Model AG-310T

Model AG-310T

Download Product Catalog

AG-310T Universal Tool & Cutter Grinder is a precision and versatile grinding machine designed for sharpening and reconditioning a wide range of cutting tools such as milling cutters, reamers, taps, form tools, and gauges. With support for cylindrical, surface, and internal grinding, it is suitable for tool rooms, workshops, and precision manufacturing applications.

TECHNICAL SPECIFICATIONS

Work Head Capacity

  • Center Height: 125 mm

  • Maximum Swing Diameter: 280 mm

  • Swing with Raising Block (Optional): 440 mm

  • Admit Between Tailstock Centers: 480 mm

  • Admit Between Work Head & Tailstock Center: 380 mm

  • Swivel of Work Head: 360°

  • Maximum Job Weight (Cylindrical Grinding): 15 kg

  • Work Head Spindle Speed (Optional): 120 / 160 / 250 RPM

Tilting Wheel Head

  • Wheel Head Swivel (Horizontal Axis): 350°

  • Wheel Head Swivel (Vertical Axis – AG-310T): ±90°

  • Vertical Movement of Wheel Head: 280 mm

  • Swivel of Table: ±45°

  • Fine Adjustment of Table: ±9°

  • Least Count (Cross & Vertical Traverse): 0.02 mm

  • Wheel Spindle Speed: 3000 / 3400 RPM

  • Vibration-Dampened Heavy-Duty Wheel Head Column

Table & Machine Details

  • Working Table Area: 125 mm × 750 mm

  • Longitudinal Table Movement: 400 mm

  • Cross Traverse: 185 mm

  • Height of Table to Work Head Center: 125 mm

  • Maximum Grinding Wheel Diameter: 200 mm

  • Maximum Wheel Width: 20 mm

  • Main Motor Power: 0.5 kW / 0.75 HP

  • Power Supply: AC 440V

  • Approximate Machine Weight: 750 kg

The AG-310T features a robust, vibration-dampened wheel head, precision-ground spindle with lifetime-greased bearings, and hardened roller-guided table movement, ensuring high accuracy, durability, and smooth operation for demanding grinding tasks.

Attachments For

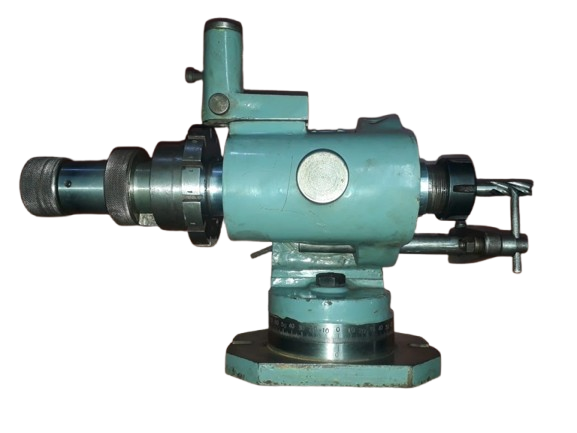

End-mill grinding attachments

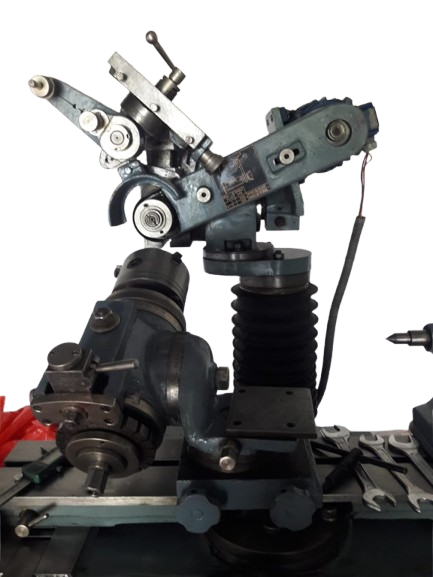

Wheel Head mounted Wheel dresser

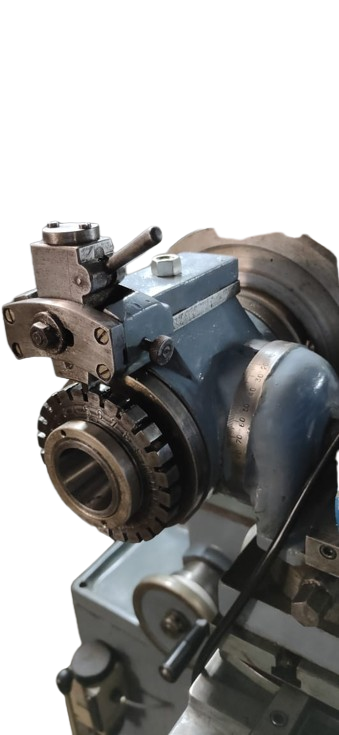

Positive Index attachme

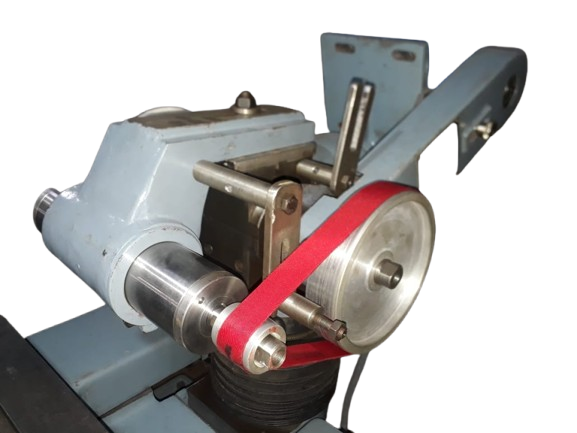

Positive Index attachme
