Model AG -310T(M)

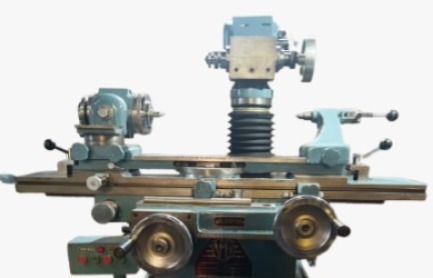

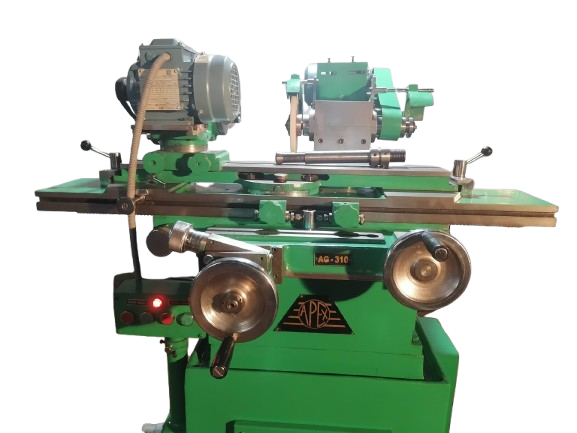

AG-310T(M) Universal Tool & Cutter Grinder is a precision machine designed for grinding and reconditioning a wide range of cutting tools including end mills, reamers, taps, ball nose cutters, spiral fluted tools, and cylindrical jobs. It supports radius grinding, surface, and cylindrical grinding operations with high accuracy and flexibility.
TECHNICAL SPECIFICATIONS
Work Head Capacity
-
Center Height: 120 mm ±5 mm (Optional: 130 mm)
-
Swing: 270 mm
-
Swing with Raising Block: 440 mm
-
Swing of Work Head: 360 mm
-
Tilting of Work Head: 180°
-
Admit Between Tailstock Centers: 530 mm
-
Admit Between Work Head & Tailstock Center Height: 390 mm
-
Maximum Job Weight (Cylindrical Grinding): 15 kg
-
Work Head Spindle Standard Bore: ISO 40 & MT-4 / MT-5
-
Work Head Spindle Speed: 120 / 160 / 250 RPM or more
Tilting Wheel Head
-
Eccentricity with Centerline of Column: 30 mm
(Optional: 40 mm / 50 mm) -
Vertical Adjustment:
-
Manual: 280 mm (min)
-
Power: 260 mm (min)
-
-
Spindle Axis Position:
-
Above Axis of Centers: 150 mm (min)
-
Below Axis of Centers: 70 mm (min)
-
-
Swivel:
-
Vertical Plane Tilting: ±30°
-
Horizontal Plane: 360°
-
-
Wheel Speed (Bi-directional): 2800 – 3400 RPM
-
Grinding Wheel (Max): 200 × 31.75 × 15 mm
-
Cup Wheel: 100 × 31.75 × 50 mm
-
Motor Power: 0.75 HP
Table & Machine Details
-
Sliding Table Area: 1120 mm × 195 mm
-
Working Table Area: 750 mm × 125 mm
-
Clamping Area: 730 mm × 125 mm
-
Longitudinal Travel: 445 mm
-
Cross Traverse: 185 mm
-
Swivel with Center Locking: ±45°
-
Fine Swivel with End Locking: ±9°
The AG-310T(M) features a tilting wheel head with vertical and horizontal swivel, a robust roller-guided table, and a precision work head with ISO-40 / MT-4/5 spindle, making it suitable for complex tool grinding with consistent accuracy and long service life.
Attachments For
Center to Center attachments
