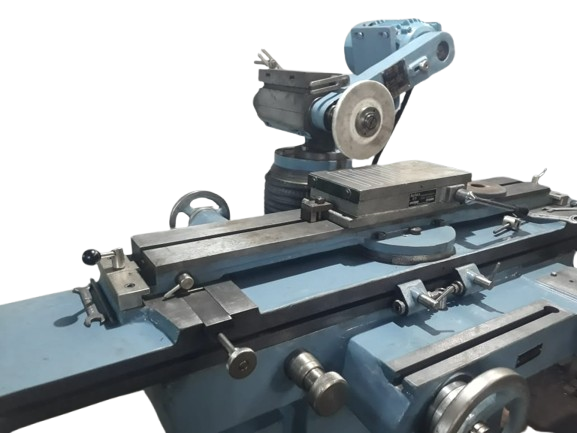

MODEL AG-430T(M)
The modified APEX Universal Tool & Cutter Grinding Machine model AG-430T(M) sets a new benchmark in efficiency and precision. With improved travel movements in Long Travel , Cross travel and Vertical Travels an optimized mechanical design, the machine now delivers smoother operation, greater control, and higher accuracy in every grinding task. These enhancements result in significantly improved overall performance, allowing users to achieve superior surface finish and consistency across a wide range of tool and cutter jobs. Designed for ease of use and long-term reliability, the upgraded system ensures maximum productivity, making it the perfect choice for industries seeking high-quality output with enhanced operational efficiency.
TECHNICAL SPECIFICATIONS
Work Head Capacity
Center height 120 mm ±5mm
(Optional- 130mm/140mm)
Maximum Swing 280 mm
Swing with raising block 460 mm
Swing of Work Head 360 mm
Tilting of Work Head 180° Deg.
Admit between tailstock canters 840 mm
Admit between work head and
Tailstock center Height 750 mm
Max. Job weight for cylindrical grinding 15kg
Work Head Spindle Standard Bore ISO: 50 MT-5
Work Head RPM 120/160/250 RPM or more
Tilting Wheel Head
Eccentricity with centerline of column 50mm (60mm optional)
Vertical adjustment:
Manual 350 mm (min)
Power 260 mm (min)
Spindle axis
Above the axis of centers 210 mm (min)
Below the axis of centers 70 mm (min)
Swivel
Vertical plane tilting ±30 Deg.
Horizontal plane 360 mm
Wheel speed in either sense of rotation 2800-3400 / 4500-5400 RPM
Grinding Wheel max Dia x Bore x Thickness 200mm x 31.75mm x 15mm
Cup Wheel: 100mm x 31.75mm x 50mm
Motor power 0.75HP/1HP
Table
Sliding Table Area 1430mm x 235mm
Working table Area 1150mm x 140mm
Working Area 1030mm x 140mm
Clamping Area 1150mm x 140mm
Longitudinal travel 510 mm
Cross traverse 250mm
Swivel with center locking ±45 Deg.
Fine/ Swivel with end locking ± 9 Deg.
Products detail
GENERALMachine floor area (L x W x H) 1430mm x 1270mm x 1395mm
Wooden box area (L x W x H) 1600mm x 1450mm x 1525mm
Machine net weight 1250kgs.
Machine with wooden box 1350kgs.
Attachments For
Surface Grinding attachments

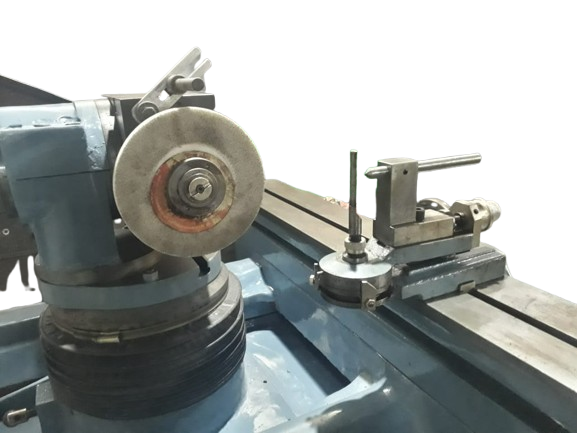

Radius Wheel Dresser attachments

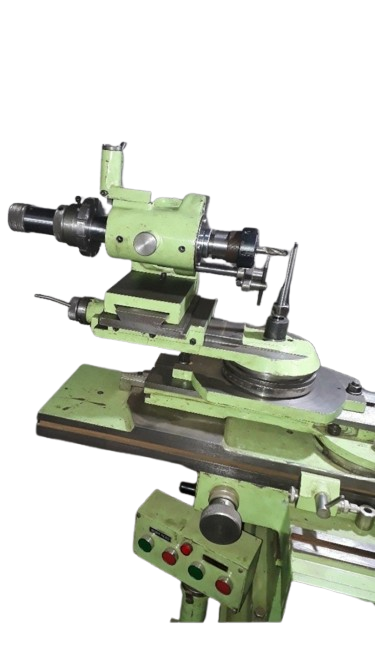

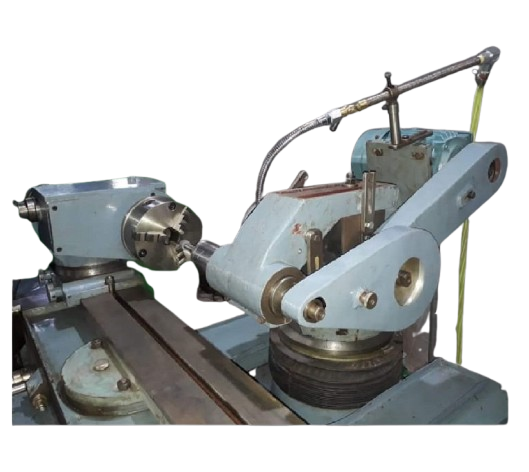

Internal Grinding attachments
